Vol. IX, No. 1


May, 1996

Photogrammetry Reconsidered

CAD drawings from photogrammetric meaurements


CAD drawings of a bay in the north wall of the Sanctuary of the Genius of Augustus at Pompeii. These were made from from photogrammetric meaurements.

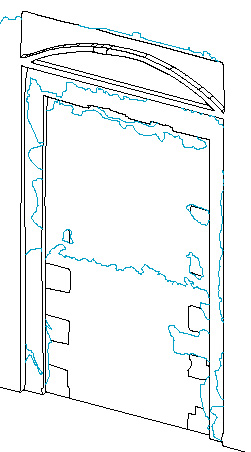

Fig. 1 - CAD model with maximum detail
from photogrammetry work. (Plaster edges
are indicated by lighter lines.)

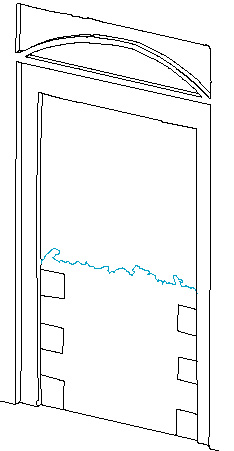

Fig. 2 - CAD model with limited detail.
